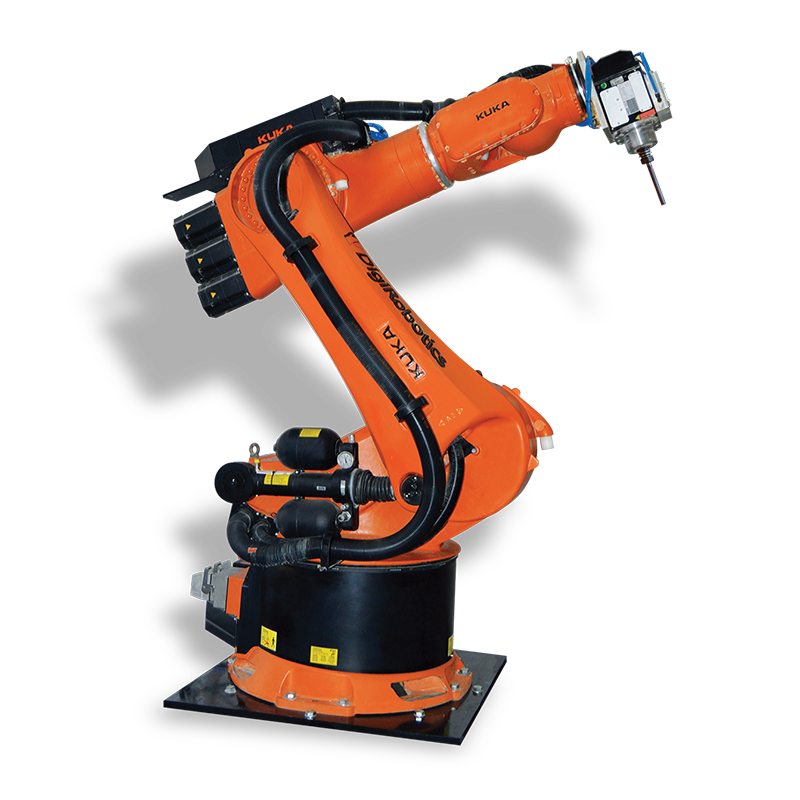

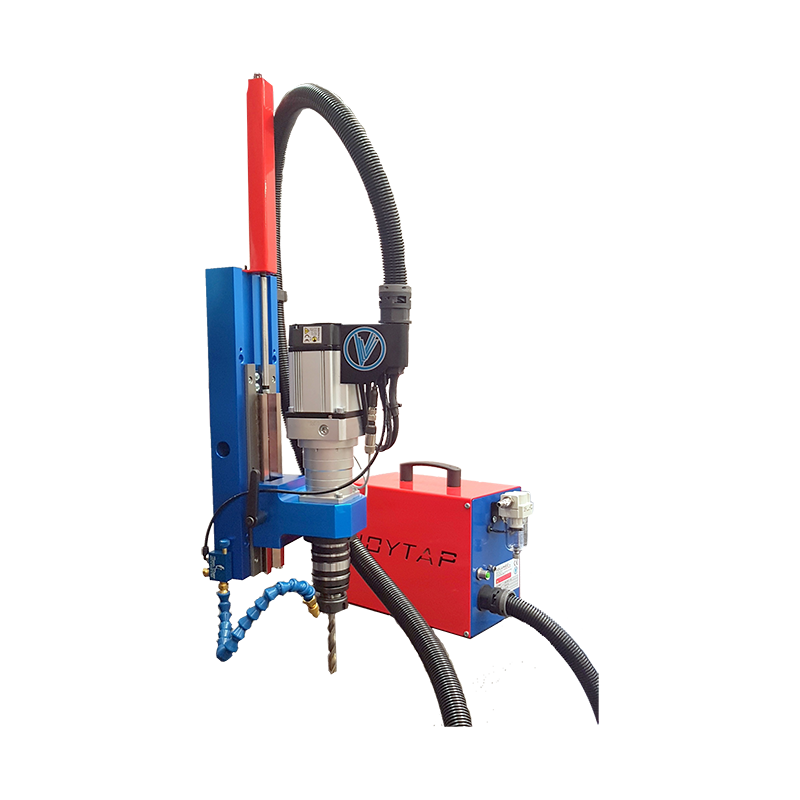

The units of the UJ series are a best solution for equipping your robot with an automatic drilling and tapping system.
Our units are equipped with a guide (Z) with 120 mm stroke and a Brushless motor 750 watt capable of drilling and threading at the desired speeds.
The quick charge spindle is designed for automatic tool change and the control box is equipped with interfaces for piloting from external devices (exp. PLC robot)
| Model | Motor type | Voltage | Speed rotation | Torque max | Drilling capacity with Twist drill | Drilling capacity with cutter | Tapping capacity on steel |
|---|---|---|---|---|---|---|---|
| Volt | rpm | Nm | mm | mm | |||
| UJ2000 | Brushless | 200 - 255 V 50/60 Hz | 100-1000 | 36 | Ø 3 - Ø 13 | Ø 20 | M3 - M12 |
| UJ2150 | Brushless | 200 - 255 V 50/60 Hz | 50-500 | 72 | Ø 8 - Ø 15 | Ø 25 | M3 - M16 |
| Model | Motor type | Voltage | Speed rotation | Torque max | Tapping capacity in Steel | Spindle |
|---|---|---|---|---|---|---|
| Volt | rpm | Nm | mm | |||
| U2000 | Brushless | 200 - 255 V 50/60 Hz | 100-1000 | 36 | M3 - M12 | GR2 |
| U2150 | Brushless | 200 - 255 V 50/60 Hz | 50-500 | 72 | M3 - M16 | GR2 |
| U2550 | Brushless | 200 - 255 V 50/60 Hz | 20-200 | 180 | M5 - M24 | GR2 |
| U3750 | Brushless | 200 - 255 V 50/60 Hz | 10-150 | 250 | M8 - M36 | GR3 |

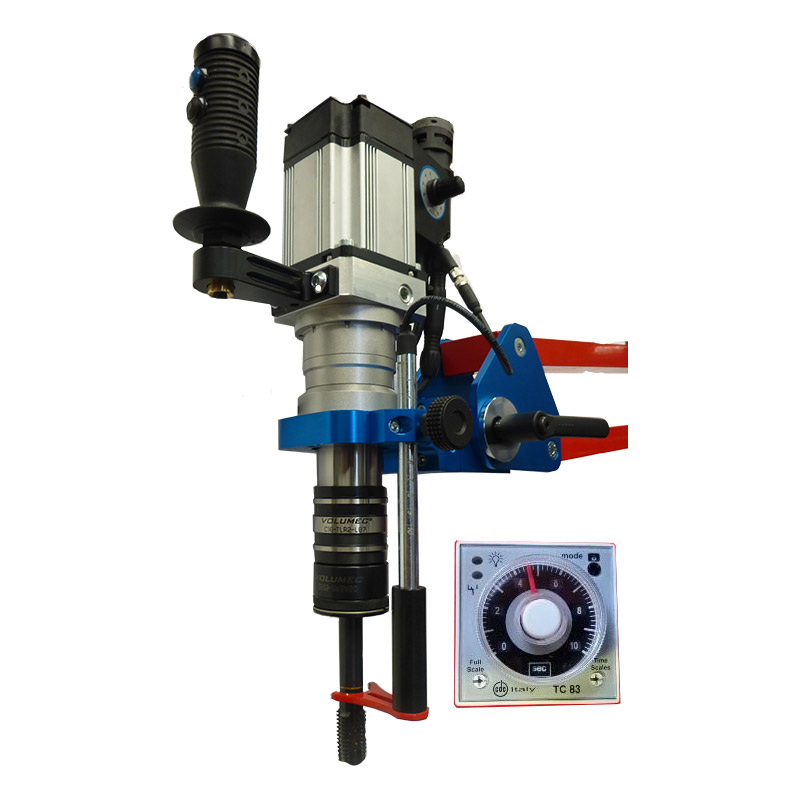

depth sensor with automatically tool reverse after to be reached the tapping depth presets

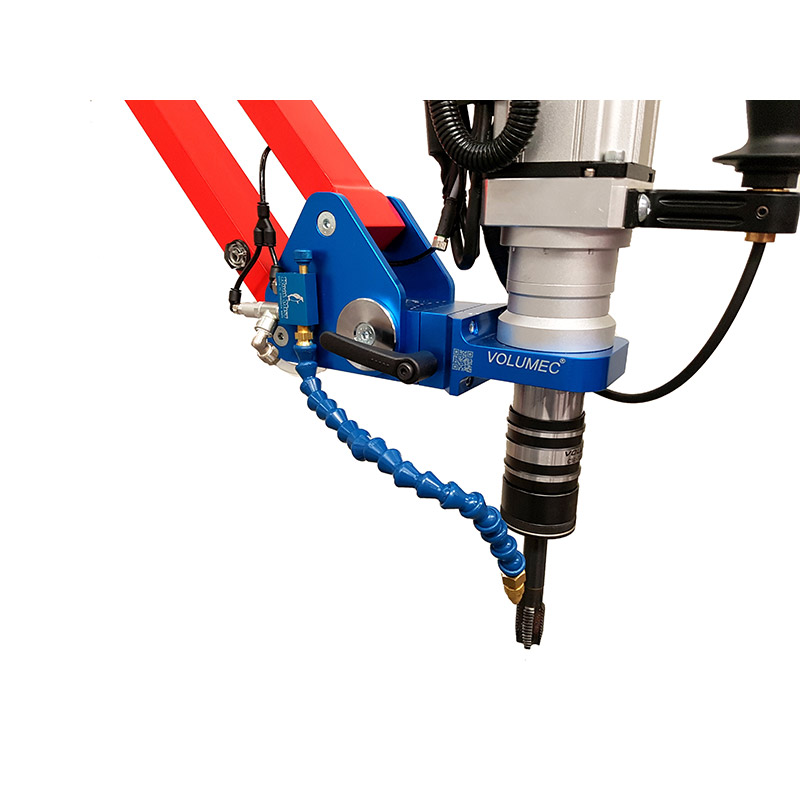

it starts automatically to every tapping, lubricating the tool in the required quantity
Gr2 ( Ø31 mm) FROM M3 TO M30

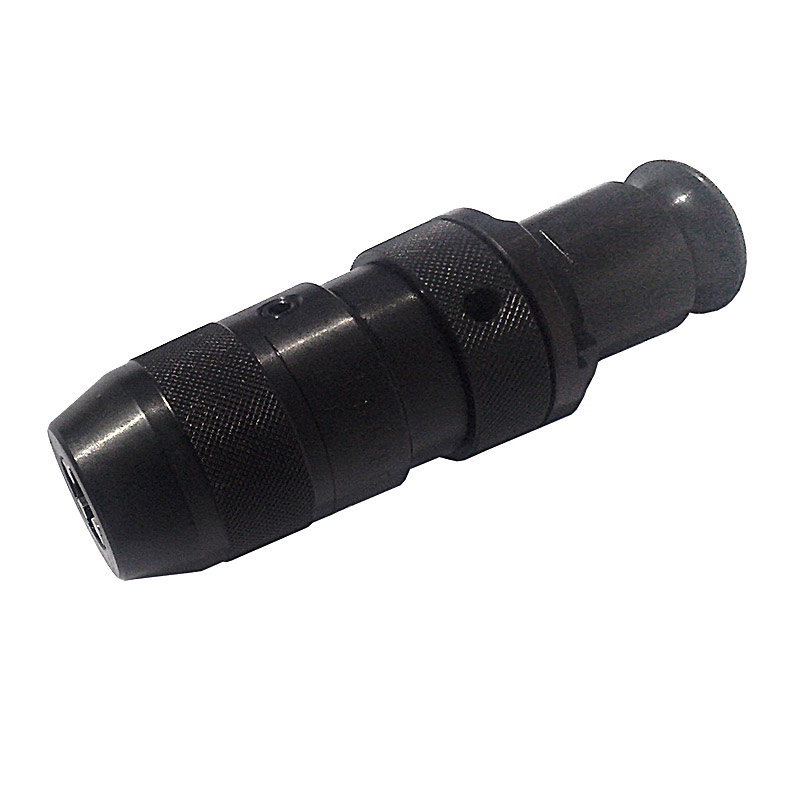

MPS13GR2 ( Ø31 mm) for tools from Ø 1 to Ø 13 mm

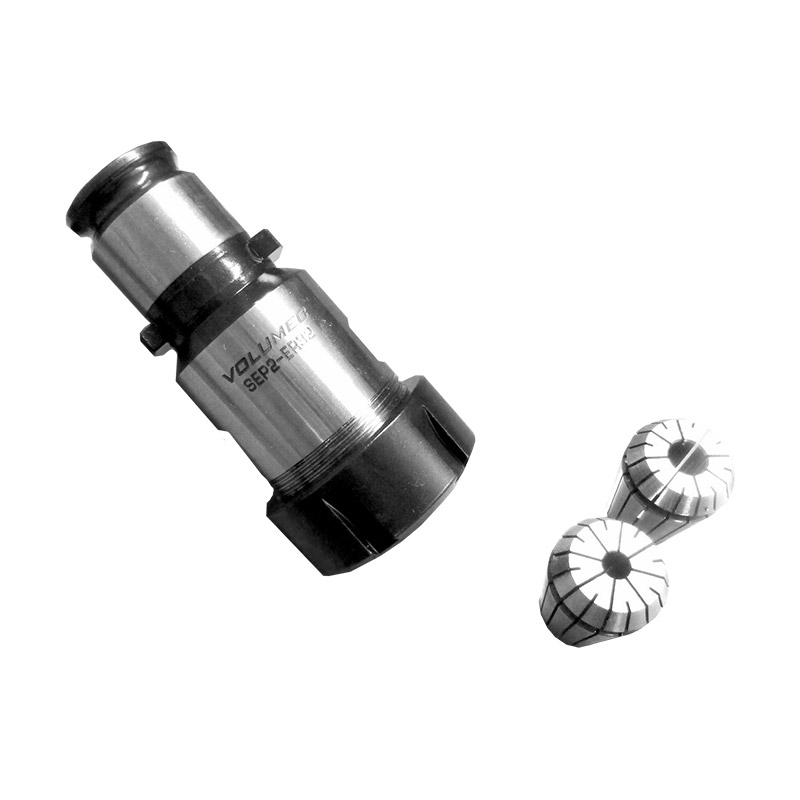

MGR2-ER25
GR2-ER32
GR2-ER40
