ROVER MANIPULATOR

DESCRIPTION

ROVER MANIPULATOR allow to lift, move and rotate your particulars with weight from 1 to 100 kg with the utmost simplicity thanking to an ergonomic system, easy to be used.
In order to the type of handling, rover manipulator could be equipped of different gripping systems, as like: pneumatic grippers, magnet or suction cup.
During the manipulation is also possible to rotate the items in desired position before laying

Model LIFTING Workray VERTICAL RACE ANCHORING SYSTEM Weight Pressure SPEED REGULATION OPERATING TEMPERATURE ROTATION
kg mm mm Kg bar
RM01 1 - 100 1915 + Head 736 Pneumatic Magnet, Suction Cup or Pneumati Gripper 60 6-8 going and return 10°-45° 360°
RM02 1 - 50 1685 + Head 736 (+500 Regulation) Pneumatic Magnet, Suction Cup or Pneumati Gripper 40 6-8 going and return 10°-45° 360°

Working Area

Working Area RM01

Working Area RM01

Working Area RM02

Working Area RM02

VIDEO

HEAD MEMBER

DESCRIPTION - SRH
SRH

DESCRIPTION - MRH
MRH

DESCRIPTION - SRH

SRH

Head member on two rotation axes

DESCRIPTION - MRH

MRH

Head member on three rotation axes

GRIPPING SYSTEM

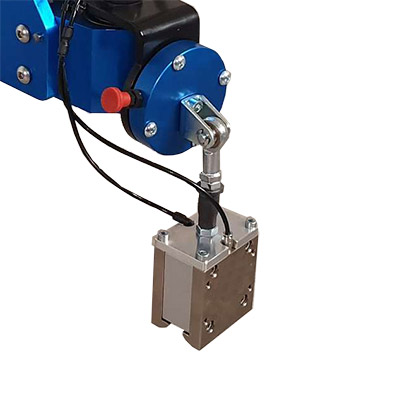

PNEUMATIC MAGNET

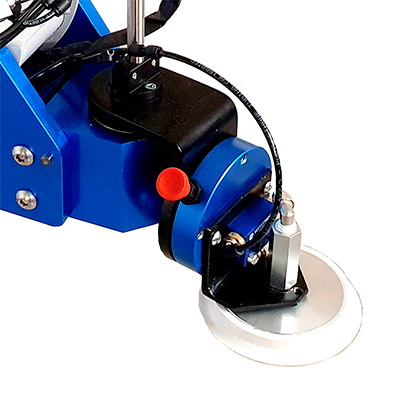

VACUUM

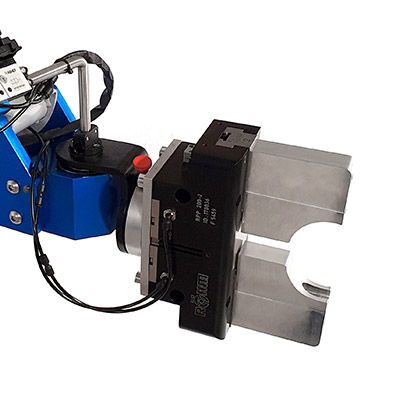

pneumatic gripper


CUSTOM SOLUTION


OPTIONALS

DESCRIPTION - CSM001 : BASEMENT WITH FIXED COLUMN 800X800 mm
CSM001 : BASEMENT WITH FIXED COLUMN 800X800 mm

Total height H= 500 mm
Weight : 350 Kg

DESCRIPTION - CSM001-2WD : TROLLEY WITH FIXED COLUMN 800X800 mm
CSM001-2WD : TROLLEY WITH FIXED COLUMN 800X800 mm

Total height H=500 mm
Equipped with electric motorized trolley.

DESCRIPTION - CSM002 : BASEMENT FOR MANIPULATOR WITH ADJUSTABLE LIFTING COLUMN
CSM002 : BASEMENT FOR MANIPULATOR WITH ADJUSTABLE LIFTING COLUMN

Column with H= 1060 mm and stroke 600mm
Material handling through brushless motor 400W – 220 V,
Piloting by electronic accelerator and up and down buttons.
Weight : 400 Kg

DESCRIPTION - CSM002-2WD :  TROLLEY WITH ADJUSTABLE LIFTING COLUMN
CSM002-2WD : TROLLEY WITH ADJUSTABLE LIFTING COLUMN

Electric motorized trolley.
Column with H= 1060 mm and stroke 600mm
Material handling through brushless motor 400W – 220 V,
Piloting by electronic accelerator and up and down buttons.
Total weight 480 kg.

DESCRIPTION - CM600/CM1000 : ADJUSTABLE LIFTING COLUMN
CM600/CM1000 : ADJUSTABLE LIFTING COLUMN

Column with H=1060/1460 mm and stroke 600/1000 mm.
Material handling through brushless motor 400W – 220 V,
Designed for floor fixing

DESCRIPTION - TDR2000-TDR4000: FLOOR RAIL
TDR2000-TDR4000: FLOOR RAIL

Length from 2000 to 4000 mm with manual movement (motorized optional)
