ROVER RM02 MANIPULATORS allows you to lift, move and rotate your parts weighing from 1 to 50 kg with ease thanks to an ergonomic and easy to use system.
The gripping systems are interchangeable according to the type of parts to be handled and with the motorized heads it is also possible to perform rotations on one or more axes.
With the CSM001 and CSM002 bases, the Rover becomes a mobile manipulation station that can be quickly placed in different workstations.
| LIFTING | 1 - 50 kg (2,2 - 110 lb) |
| Workray | 1685 mm (66,3 in) + Head |
| VERTICAL RACE | 736 mm (+500 Regulation) - 29 in (+20 Regulation) |
| ANCHORING SYSTEM | Pneumatic Magnet, Suction Cup or Pneumati Gripper |
| Weight | 40 Kg (88,2 lb) |
| Pressure | 6 - 8 bar |
| SPEED REGULATION | going and return |
| OPERATING TEMPERATURE | 10°-45° C |
| ROTATION | X1=360°/ X2=180°/ X3=180°/ X4 =180° |
Working Area RM02
PG200MPP
MV072V815015
MV074V815015
2MRP46
Total height H= 500 mm
Weight : 350 Kg
Total height H=500 mm
Equipped with electric motorized trolley.
Column with H= 1060 mm and stroke 600mm
Material handling through brushless motor 400W – 220 V,
Piloting by electronic accelerator and up and down buttons.
Weight : 400 Kg
Electric motorized trolley.
Column with H= 1060 mm and stroke 600mm
Material handling through brushless motor 400W – 220 V,
Piloting by electronic accelerator and up and down buttons.
Total weight 480 kg.
Column with H=1060/1460 mm and stroke 600/1000 mm.
Material handling through brushless motor 400W – 220 V,

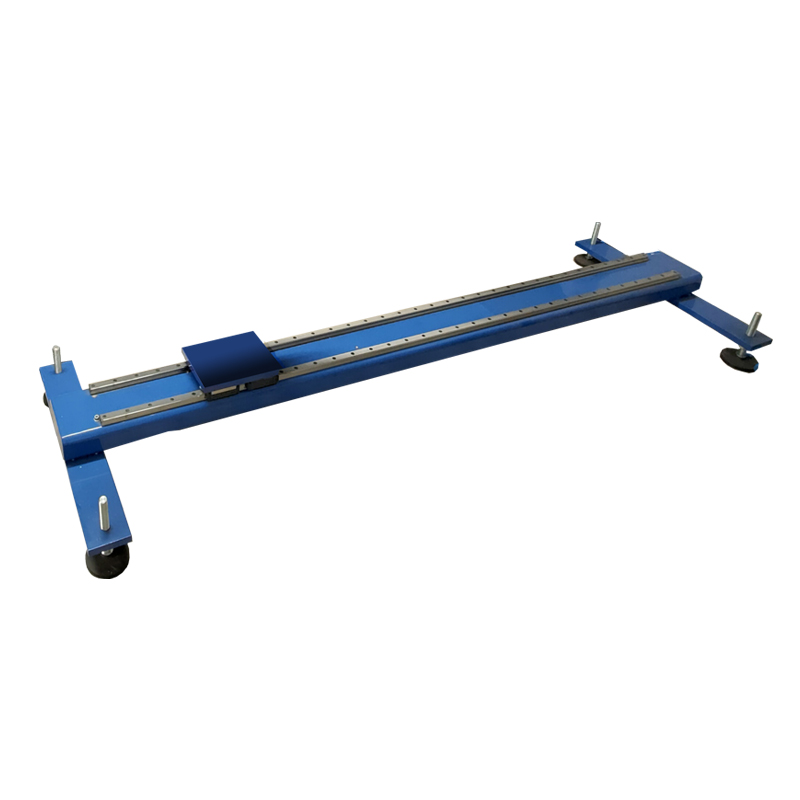

Designed for floor fixing
Length from 2000 to 4000 mm with manual movement (motorized optional)
