DRILLTRONIC is the only integrated drilling and tapping units equipped with an innovative system developed with an articulated arm to give maximum working flexibility.
The structure is designed with a technology that can provide smooth and quick placements, ensuring rigidity and precision during machining operations.
With the new control system VAPS (Volumec ® Assisted Positioning System) with a touch-screen operator interface, easy and intuitive, you can perform drilling and tapping, to set quotas, without the need of manually tracking used with traditional drills.
| Model | Speed rotation | Mechanical torque shift | Drilling capacity with Twist drill | Drilling capacity with cutter | Tapping capacity on steel | Advancement stroke | Column height |
|---|---|---|---|---|---|---|---|
| rpm | mm | mm | mm | mm | |||
| DT131000 | 100-1000 | NO | Ø 3 - Ø 13 | Ø 20 | M3 - M12 | 135 | 1100 |
| DTM | 5-5000 * | YES | Ø 3 - Ø 16 * | Ø 40 * | M3 - M24 * | 135 | 1100 |
| * Total capacity with multiple modules MD-MJ | |||||||
| Module | Speed Rotation | Max Torque | DRILLING CAPACITY WITH TWIST DRILL IN STEEL | DRILLING CAPACITY WITH CUTTER | TAPPING CAPACITY ON STEEL |
|---|---|---|---|---|---|
| rpm | Nm | mm | mm | ||
| MD-01 | 100-5000 | 7 Nm | Ø3 - Ø6 | / | M3-M5 |
| MD-04 | 25-1250 | 28 Nm | Ø3 - Ø10 | Ø15 | M3-M10 |
| MD-05 | 20-1000 | 36 Nm | Ø3 - Ø13 (Ø20 Alu) | Ø20 | M3-M12 |
| MD-10 | 10-500 | 72 Nm | Ø3 - Ø16 (Ø20 Alu) | Ø30 | M3-M18 (M20 All) |
| MD-15 | 5-350 | 105 Nm | Ø10 - Ø16 (Ø20 Alu) | Ø40 | M5-M20 (M22 All) |
| MJ-25 | 4-200 | 180 Nm | Ø50 | M5-M24 |
Drilltronic Working Area

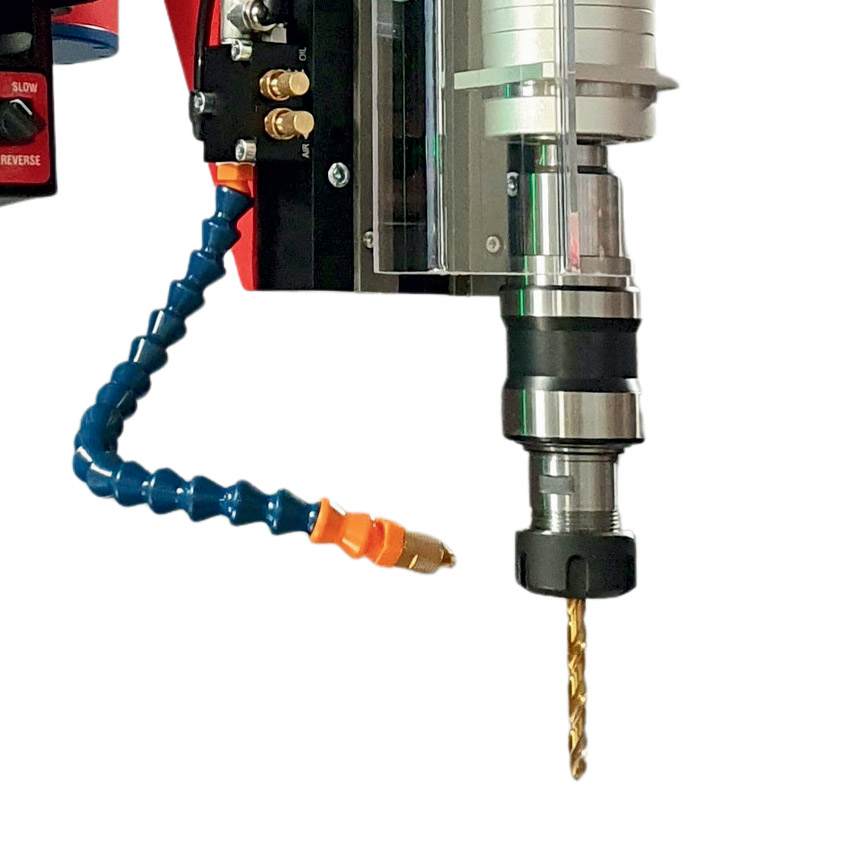

The Drilltronic can be supplied with an automatic lubrication system. With this system it is possible to ensure a correct and constant inflow of lubricating oil to the tool.
The intensity of the flow, the amount and the amplitude of the atomized liquid can be easily adjusted.

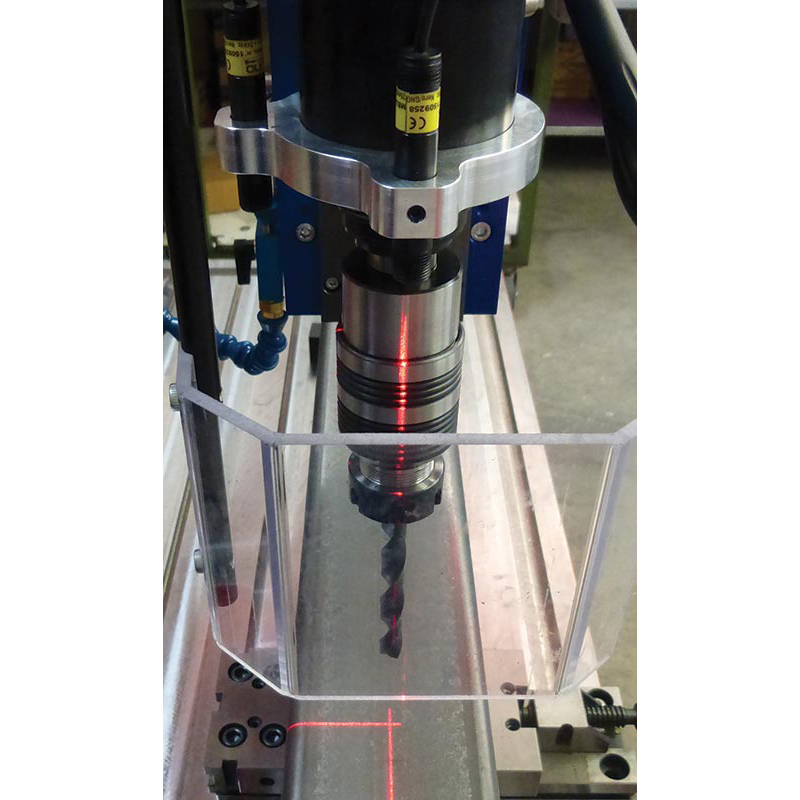

Thanks to the laser control you can check the precise position of the drilling/tapping point.

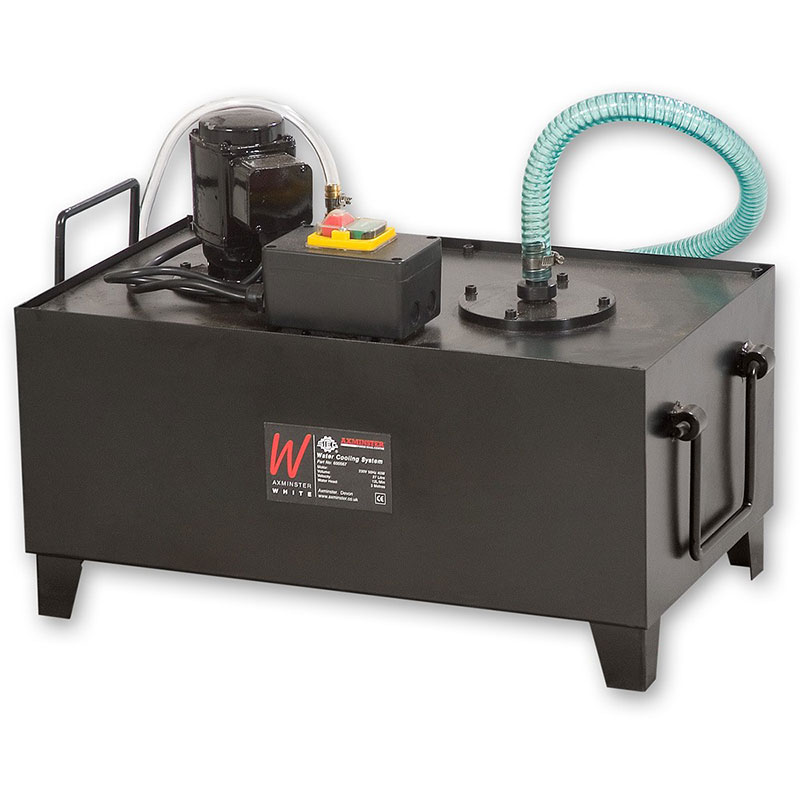

Refrigeration system with recirculation pump for coolant.
Allows you to drill and tap at the desired deep also in the manual version.

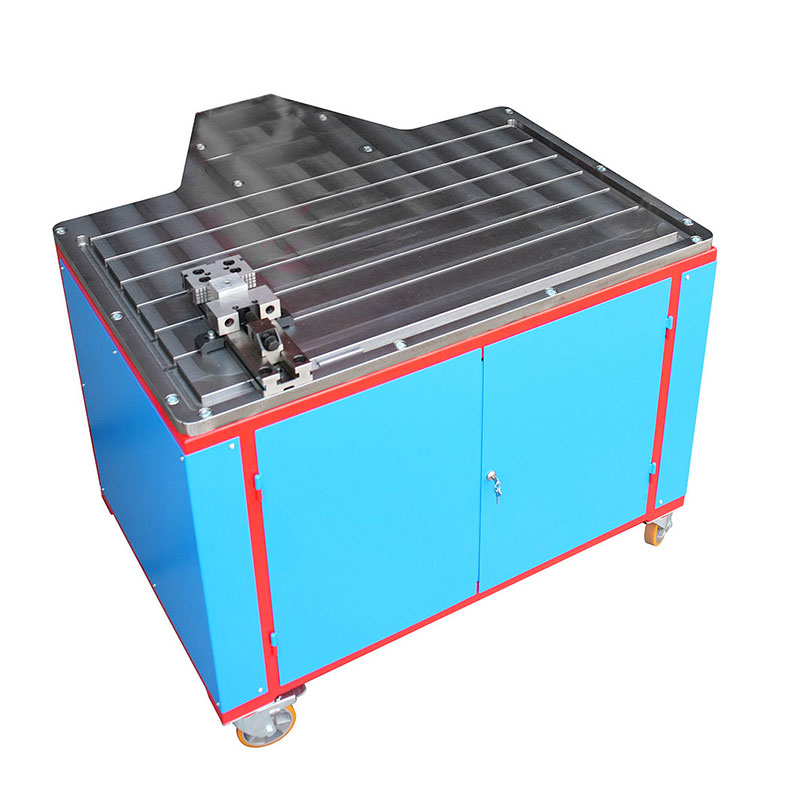

Workbench optimized for supporting DRILLTRONIC, with 30mm base and an internal vain to store tools.
Available with rough plan or with T-slots plan designed for the recovery of refrigerant.

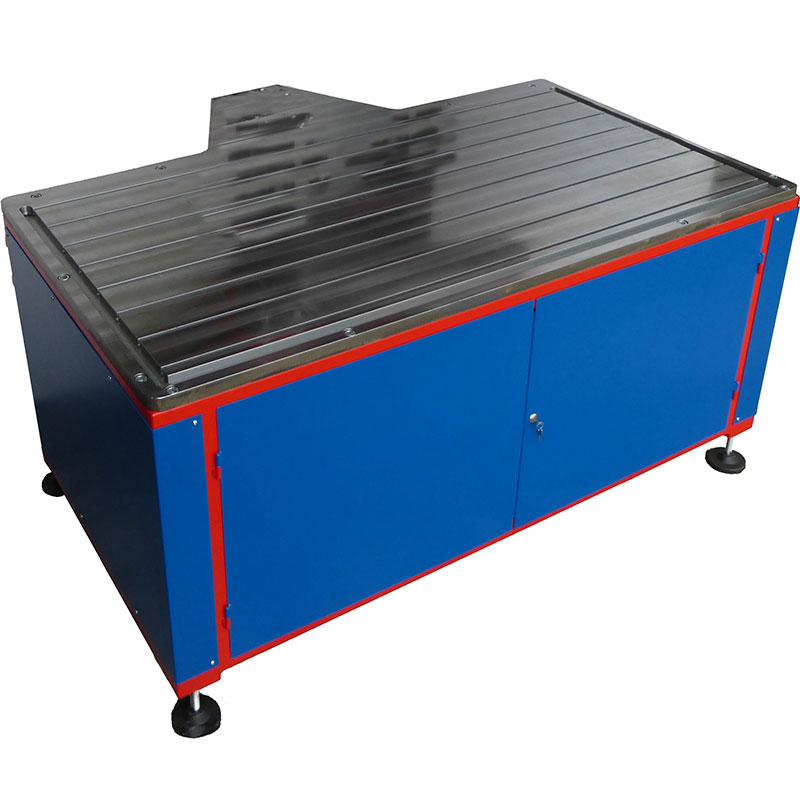

Workbench optimized for supporting DRILLTRONIC, with 30mm base and an internal vain to store tools.
Available with rough plan or with T-slots plan designed for the recovery of refrigerant.

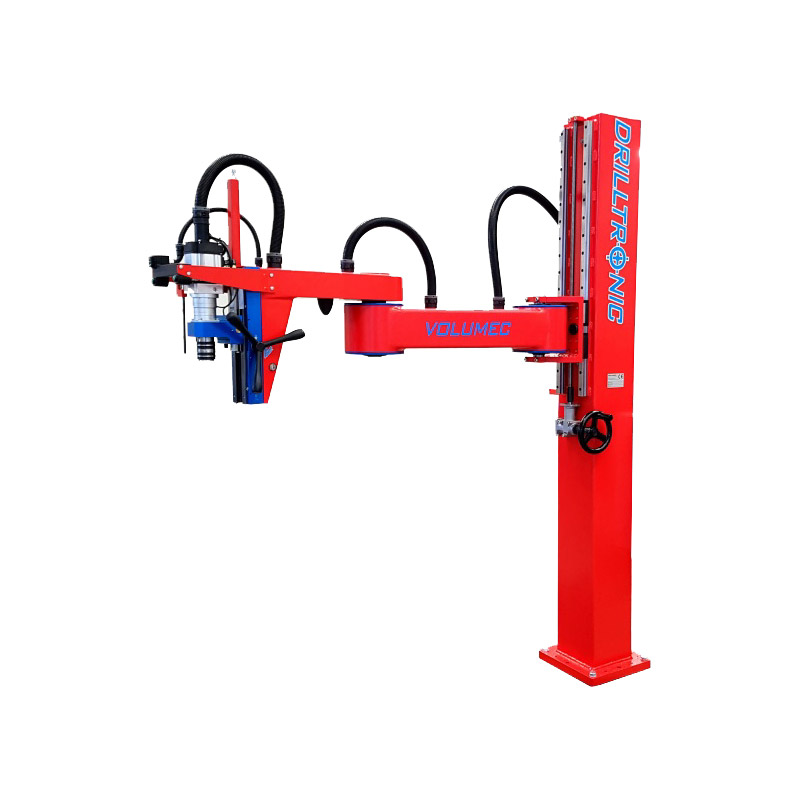

Lifting column designed for being fixed on the ground.
Manual pilotage through screwdriver (automatic version on request).
Weight 215kg.
Base 300x300mm
Course 715mm
