SNIPER

FEATURES

Articulated balanced arm made entirely of special aluminum, which guarantee hight stability and a precise holes alignment.

Electric Brushless Motor 400 W (220 V) complete integrated in the arm, with hight performance, minimum noise and low electricity consumption.

Large range of adjustment of tapping speed without the use of additional modules

Maximum reverse speed for the extraction of the tool

Articulated arm with adjustable balance

Possibility to tap also blind hole with the quick change holders with safety and adjstable clutch to prevent tap breakage.

Electric tapping machine with balanced arm.
Electric tapping machine with balanced arm.

SNIPER

Electric tapping machine with balanced arm.

Compact and practical, thanks to its structure in aluminum, Sniper is an electric tapping machine with 400 Watt brushless motor with a wide tapping range on different materials. The control unit is completely integrated inside the articulated arm.

Model Tapping capacity in Steel Tapping capacity in Aluminium Speed Torque max Spindle
Metric Inches rpm Nm
SNP 400 M2 - M14 1/8" -9/16” M2 - M16 40-450 39 Ø19 GR1
WORKING AREA

The double articulated arm of the SNIPER series allows you to work comfortably within a ray of 1102 mm.

WORKING AREA
SPEED REGULATION

Possibility of changing the speed of rotation according to the diameter of tapping.

SPEED REGULATION

VIDEO

ACCESSORIES

Electric tapping machine with balanced arm. - EDS01 - DEPTH SENSOR
EDS01 - DEPTH SENSOR

Electric tapping machine with balanced arm. - M-MULTIDIRECTIONAL HEAD
M-MULTIDIRECTIONAL HEAD

Electric tapping machine with balanced arm. - EDS01 - DEPTH SENSOR

EDS01 - DEPTH SENSOR

depth sensor with automatically tool reverse after to be reached the tapping depth presets

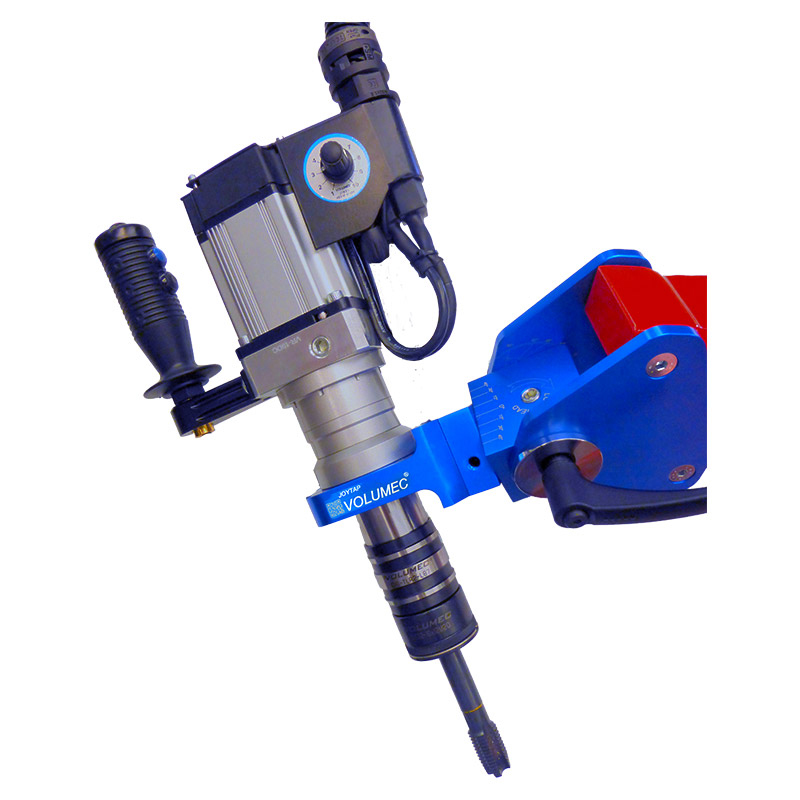

Electric tapping machine with balanced arm. - M-MULTIDIRECTIONAL HEAD

M-MULTIDIRECTIONAL HEAD

Rotational head to thread in any position.

OPTIONALS

Electric tapping machine with balanced arm. - MCA001: TAPPING MACHINE TROLLEY HOLDER
MCA001: TAPPING MACHINE TROLLEY HOLDER

850x750mm (total weight 65 kg.) H=870 mm
Upper bull top Internal top with bushes holder
4 turning wheels – 2 with brakes

Electric tapping machine with balanced arm. - BML001: WORK STATION
BML001: WORK STATION

800x600 mm (total weight 150 kg.)
H= 830 mm (adjustable)
Thickness of the working plane 30mm entirely in milled steel and t-slots interior bushes
holder

Electric tapping machine with balanced arm. - BML002A
BML002A

Side plate 90°
Work station with t slots
600x300 mm entirely in 30 mm milled steel and t-slots

Electric tapping machine with balanced arm. - CCF100 TROLLEY 800X800MM
CCF100 TROLLEY 800X800MM

30 mm base central arm support
column = 1000 mm
4 turning wheels – 2 with brakes
weight 150 kg

Electric tapping machine with balanced arm. - BUSHES WITH CLUTCH M2 M16
BUSHES WITH CLUTCH M2 M16

Gr1 ( Ø19 mm) FROM M2 TO M16

Electric tapping machine with balanced arm. - BUSHES WITH CLUTCH M3 M30
BUSHES WITH CLUTCH M3 M30

Gr2 ( Ø31 mm) FROM M3 TO M30

Electric tapping machine with balanced arm. - BUSHES WITH CLUTCH M16 M42
BUSHES WITH CLUTCH M16 M42

Gr3 ( Ø 48 mm) FROM M16 TO M42

Electric tapping machine with balanced arm. - BUSHES WITHOUT CLUTCH
BUSHES WITHOUT CLUTCH

FROM M2 TO M42
Gr1 ( Ø19 mm)
Gr2 (Ø31 mm)
Gr3 (Ø 48 mm )

Electric tapping machine with balanced arm. - POSITIONING MAGNET
POSITIONING MAGNET

BMGR1 ( Ø19 mm)
BMGR2 ( Ø31 mm)

Electric tapping machine with balanced arm. - SPINDLE AND COUNTERSINKS
SPINDLE AND COUNTERSINKS

MMPS10GR1 ( Ø19 mm) for tools from Ø 0,5 to Ø 10 mm

Electric tapping machine with balanced arm. - DIE BUSHES HOLDER (M5-M20
DIE BUSHES HOLDER (M5-M20

Electric tapping machine with balanced arm. - BUSH REDUCTION
BUSH REDUCTION

BRGR1/GR2 (DA 31 A 19)
BRGR2/GR3 (DA 48 A 31)
BRGR3/GR4 (DA 60 A 48)

Electric tapping machine with balanced arm. - SPINDLE WITH INSERT HOLDER
SPINDLE WITH INSERT HOLDER

MPIM3 - MPIM4
MPIM5 - MPIM6
MPIM8 - MPIM10
MPIM12 - MPIM16
