NEW ALUMINIUM STRUCTURE developed with an EXCLUSIVE Volumec profile that gives greater rigidity and precision than other models
MECHANICS of the articulated arm improved for fluidity and resistance
NEW GENERATION BRUSHLESS MOTOR (G2) with unrivalled performance and reliability
INTEGRATED SHIELDED WIRING that does not require awkward adjustments during movement
VASTC TOUCH PANEL, the most advanced on the market for screwing/tapping, updated with new functions and programmable torque (Nm)
MULTIDIRECTIONAL HEAD also with automatic search for 0-90° workpiece alignment
LOW CONSUMPTION AND MINIMUM NOISE LEVEL
With thousands of machines sold and satisfied customers all over the world, Joytap is a guarantee in performance, quality and low energy consumption. Its unique technical characteristics are a result of many years of research and development and allow to made different operations with the same machine: TAPPING, SCREWING WITH COUPLE CONTROL, INSERT POSE/HELICOIL, COUNTERSINKING, REAMING.
Model | Tapping capacity in Steel | Speed | Workray | Weight | Spindle | |
---|---|---|---|---|---|---|
Metric | Inches | rpm | mm | kg | ||
JT2000 | M3 - M12 | 1/8" -1/2” | 100-1000 | 1370 | 15 | GR2 |
JT2150 | M3 - M16 | 1/8"- 5/8" | 50-500 | 1370 | 15 | GR2 |
JT2500 | M5 - M24 | 5/32"-7/8" | 20-200 | 1370 | 16 | GR2 |
All models of JOYTAP series can be equipped with touchscren system, with the following features:
AUTOMATIC TAPPING MODE (set pitch – depth - speed – torque in Nm to save the tools)
MANUAL TAPPING MODE (set speed – torque in Nm to save the tools)
COUNTING THREADS MADE
SAVEABLE PROGRAMS, password protection
Easly PROGRAMMABLE through the INTEGRATED INTERFACE
Store data for later reuse
ENCODER-BASED CONTROL means NO
SCREWING WITH AUTOMATIC STOP at the PRESET TORQUE mode. ( set speed – torque in Nm)
Green light for screwed end indication.
SCREW CENTERING SYSTEM before screwing.
COUNTING SCREWING MADE
Password-protected salvable programs
Easly PROGRAMMABLE through the INTEGRATED INTERFACE
Store data for later re-use
ENCODER-BASED CONTROL means NO LOSS OF SPEED AND TORQUE during screwing
The New Vastc system 4.0 (assisted screwing tapping control), it has been equipped with Wifi connection, so that it can be controlled easy from smartphone, computer and/or tablets:
Lan connection, Wifi or sim card.
Sets remote screwing and tapping programs.
Direct download of working report to your device.
Data / Time
Number of tapping/screwing
Pitch / Depth
Torque
Speed
USB port for direct uploading/downloading of programs to your Vastc control.

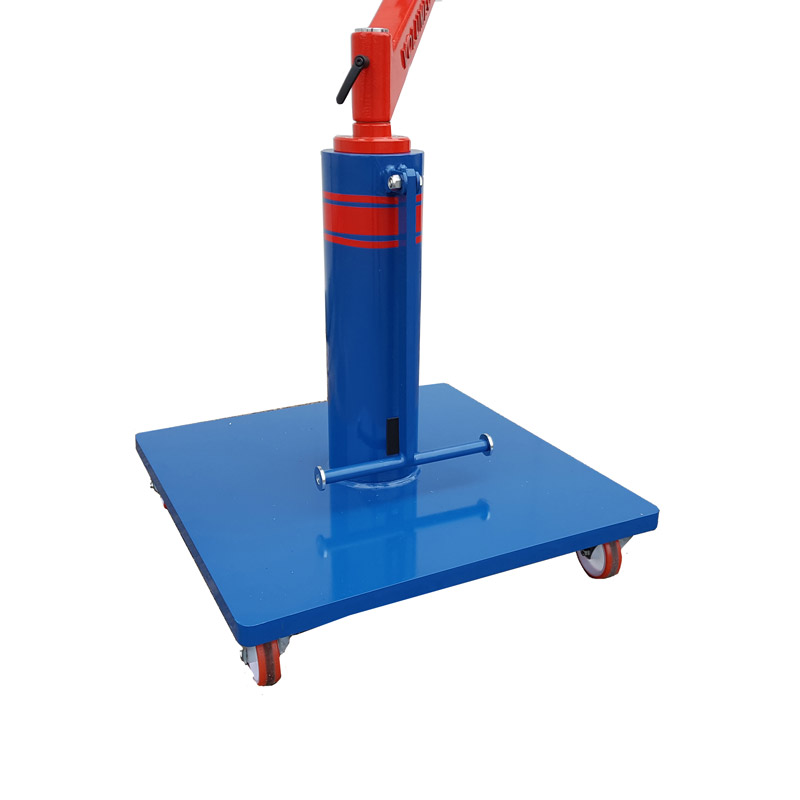

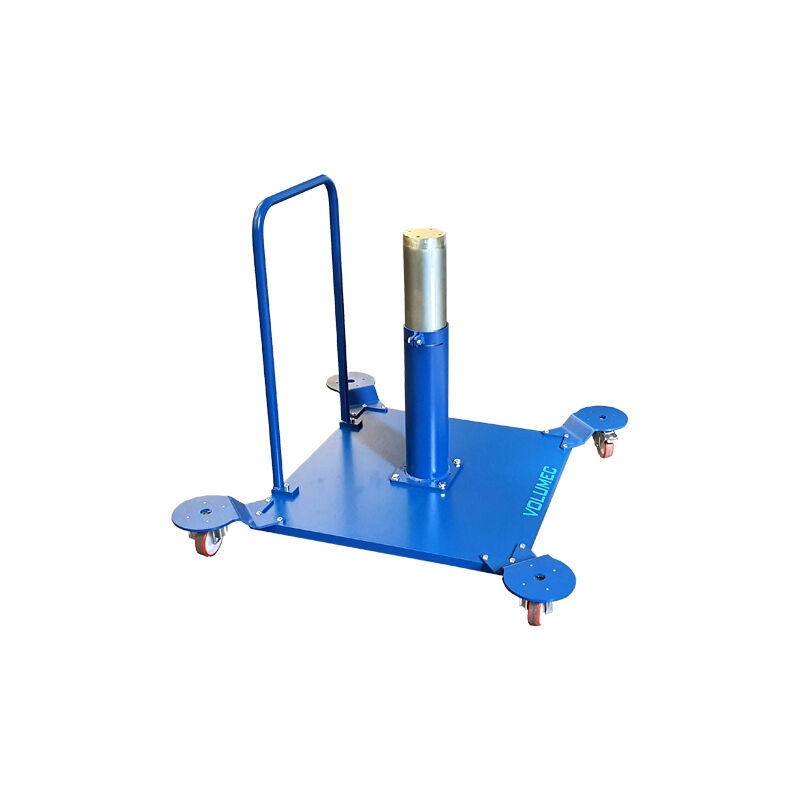

850x750mm (total weight 65 kg.) H=870 mm
Upper bull top Internal top with bushes holder
4 turning wheels – 2 with brakes
With caves for clamping pieces

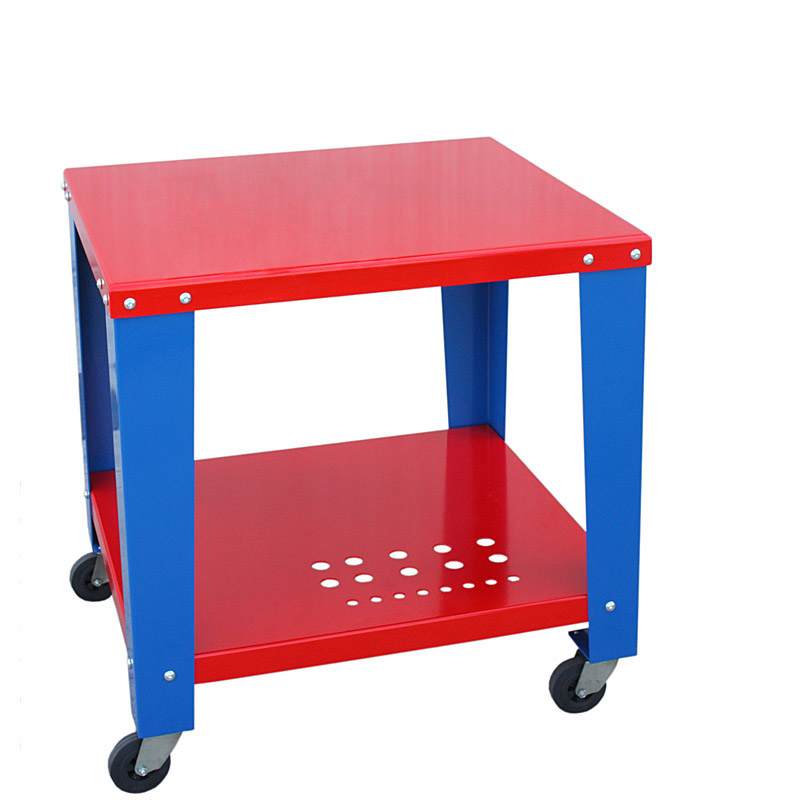

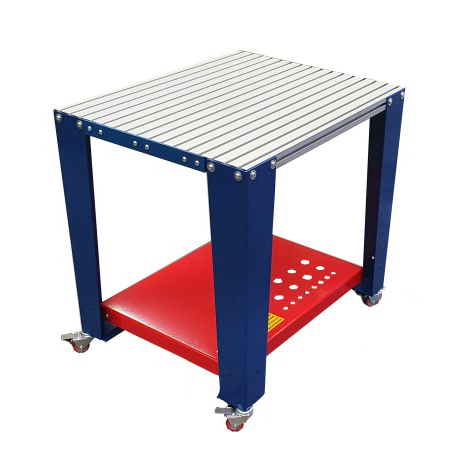

800x640 h=870 mm
Lower shelf in steel, 4 turning wheels, 2 with brakes.
Weight : 55 Kg

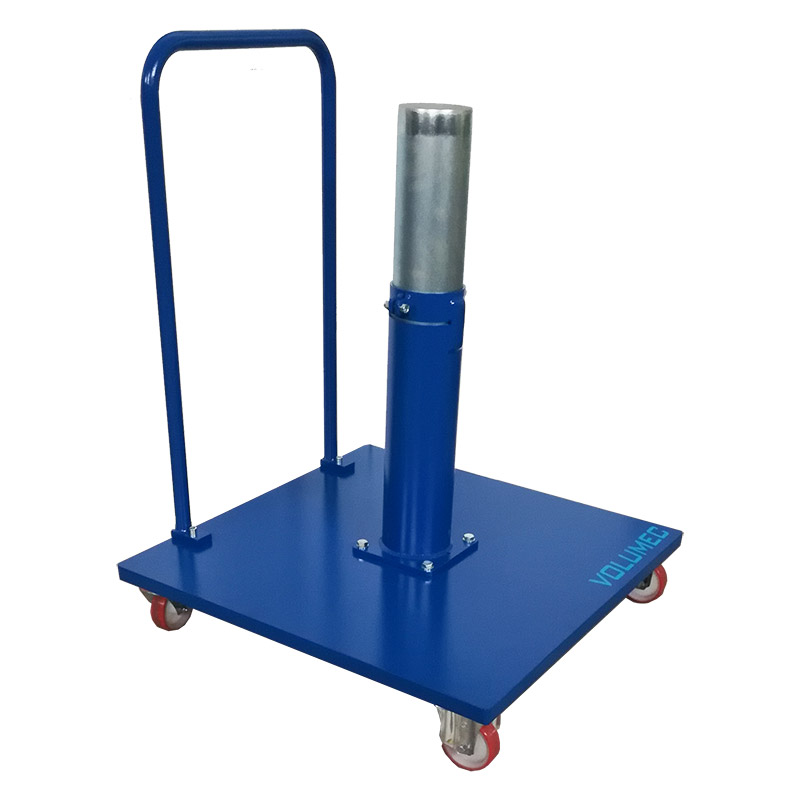

800x600 mm (total weight 150 kg.)
H= 830 mm (adjustable)
Thickness of the working plane 30mm entirely in milled steel and t-slots interior bushes
holder
Side plate 90°

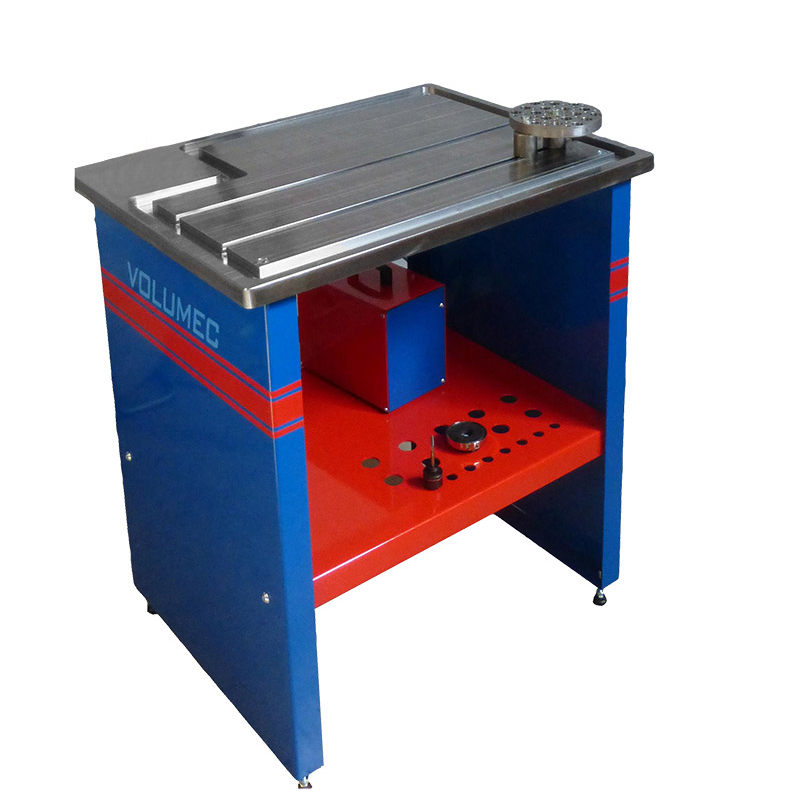

Work station with t slots

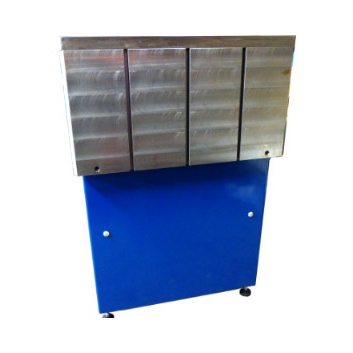

600x300 mm entirely in 30 mm milled steel and t-slots

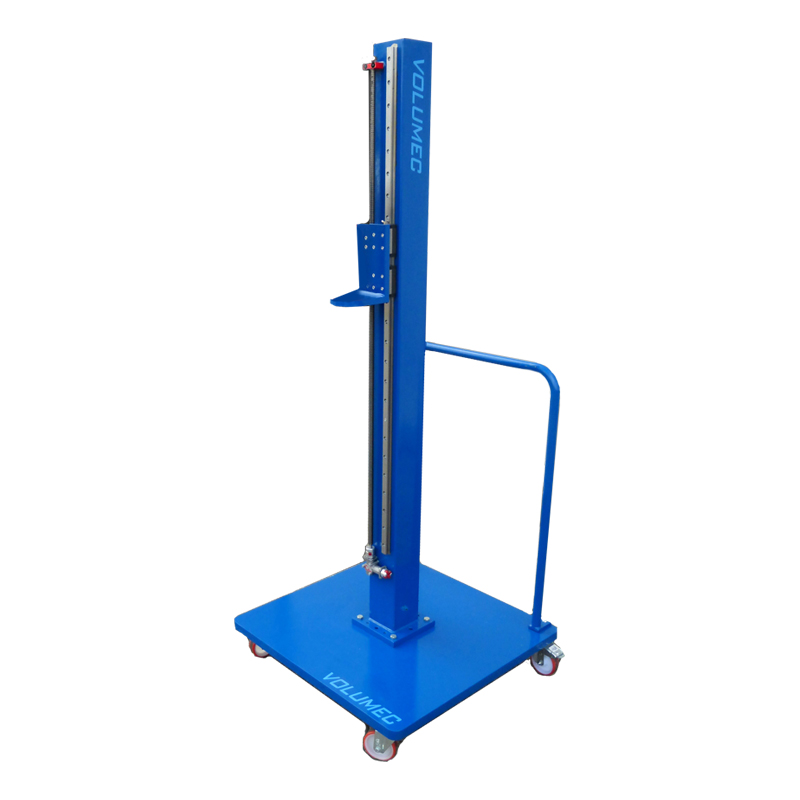

with 4 wheels, 2 with brake, lifting column h=2000mm.
Controllable with electric or pneumatic screwdriver.
Weight: 220 Kg
Column with adjustable height 650mm-1050 mm.
4 turning wheels, 2 with brakes.
Weight: 185 Kg
30 mm base central arm support
column = 1000 mm
4 turning wheels – 2 with brakes
weight 150 kg
With base of 30 mm, central column for arm support with adjustable height from 650mm to 1050mm, 4 turning wheels, 2 with brakes.
Weight: 165 Kg
Gr1 ( Ø19 mm) FROM M2 TO M16
Gr2 ( Ø31 mm) FROM M3 TO M30
Gr3 ( Ø 48 mm) FROM M16 TO M42
FROM M2 TO M42
Gr1 ( Ø19 mm)
Gr2 (Ø31 mm)
Gr3 (Ø 48 mm )
BMGR1 ( Ø19 mm)
BMGR2 ( Ø31 mm)

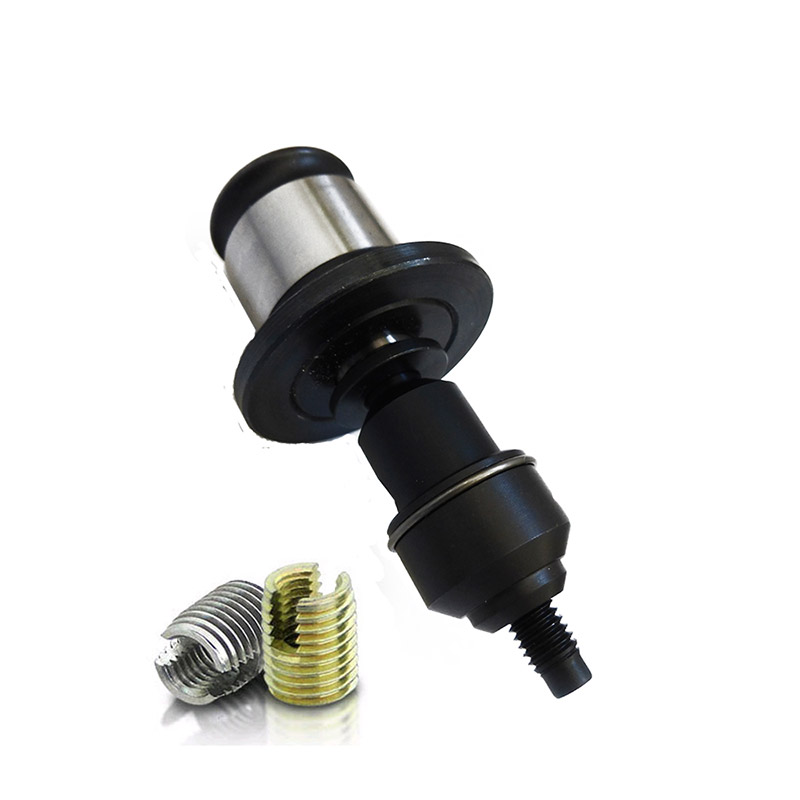

MPS10GR1 ( Ø19 mm) for tools from Ø 0,5 to Ø 10 mm
MPS10GR2 ( Ø31 mm) for tools from Ø 0,5 to Ø 10 mm
MPS13GR2 ( Ø31 mm) for tools from Ø 1 to Ø 13 mm
BRGR1/GR2 (DA 31 A 19)
BRGR2/GR3 (DA 48 A 31)
BRGR3/GR4 (DA 60 A 48)

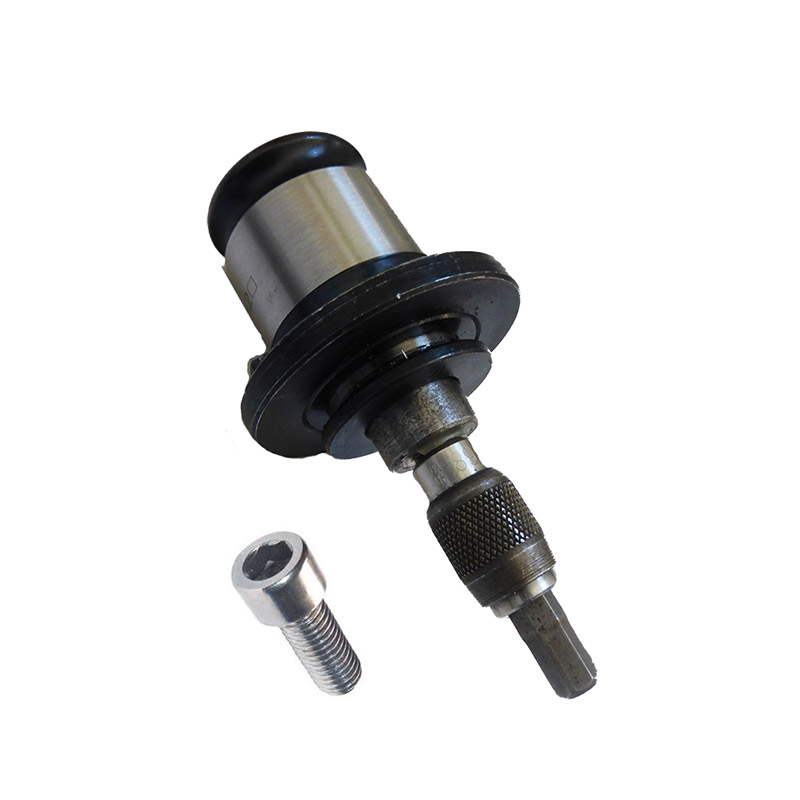

MPIM3 - MPIM4
MPIM5 - MPIM6
MPIM8 - MPIM10
MPIM12 - MPIM16

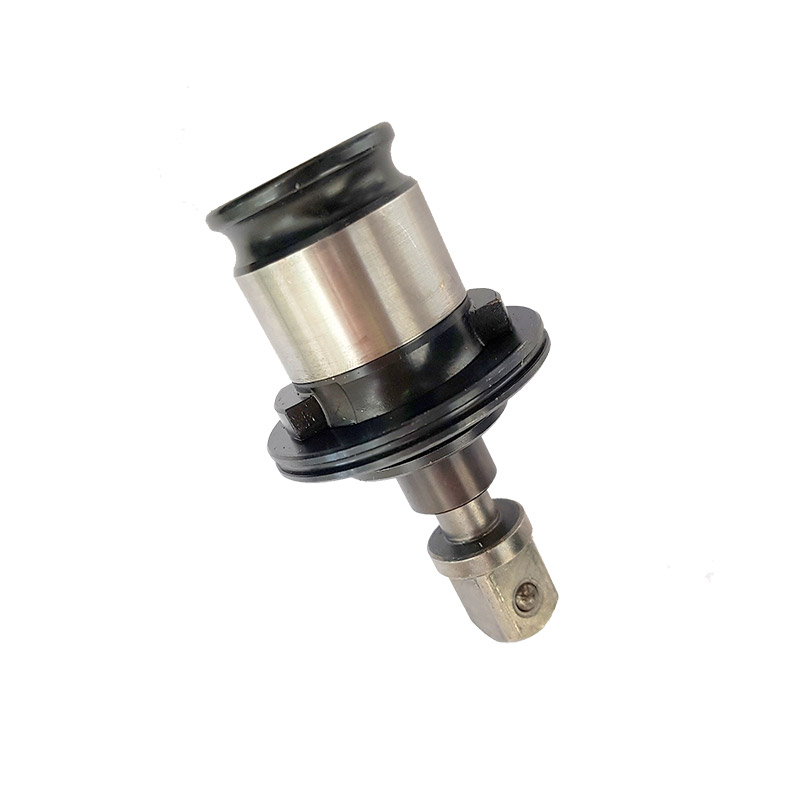

MPAE1-4
MPA 1/4
MPA 3/8
MPA 1/2
