ROVER RM01

DESCRIPTION
DESCRIPTION

ROVER RM01

DESCRIPTION

ROVER RM01 MANIPULATORS allows you to lift, move and rotate your parts weighing from 1 to 100 kg with ease thanks to an ergonomic and easy to use system.
The gripping systems are interchangeable according to the type of parts to be handled and with the motorized heads it is also possible to perform rotations on one or more axes.
With the CSM001 and CSM002 bases, the Rover becomes a mobile manipulation station that can be quickly placed in different workstations.

technical data

LIFTING 1 - 100 kg (2,2 - 220 lb)
Workray 1925 mm (75,8 in) + Head
VERTICAL RACE 736 mm (29 in)
ANCHORING SYSTEM Pneumatic Magnet, Suction Cup or Pneumati Gripper
Weight 60 kg (130 lb)
Pressure 6 - 8 bar
SPEED REGULATION going and return
OPERATING TEMPERATURE 10°-45° C
ROTATION X1=360°/ X2=180°/ X3=180°/ X4=180°

Working Area

Working Area RM01

Working Area RM01

VIDEO

HEAD MEMBER

Rover Manipulator 01

MANUAL

Card image cap
magnet trvm46
Card image cap
magnet trvm70
Card image cap
sg
Card image cap
srh
Card image cap
mrh

MOTORIZED

Card image cap
rm.tm07
Card image cap
rm.tm180
Card image cap
rm.tm07-180
Card image cap
gripper 1

PG200MPP

Card image cap
gripper 2
Card image cap
vacuum 2

MV072V815015

Card image cap
vacuum 4

MV074V815015

Card image cap
magnet 2m46

2MRP46

Card image cap
custom

OPTIONALS

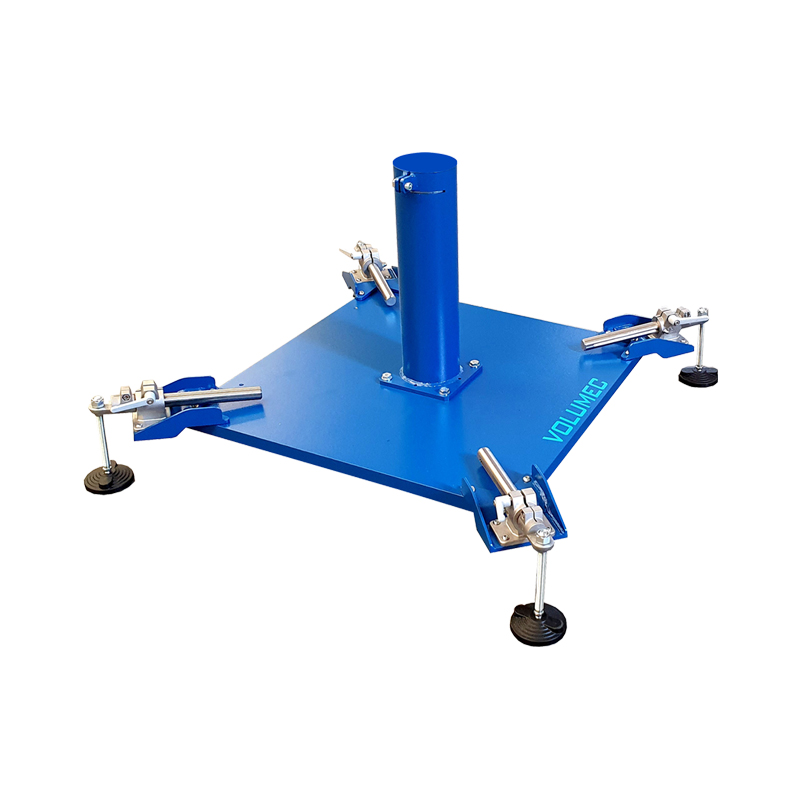

DESCRIPTION - CSM001 : BASEMENT WITH FIXED COLUMN 800X800 mm
CSM001 : BASEMENT WITH FIXED COLUMN 800X800 mm

Total height H= 500 mm
Weight : 350 Kg

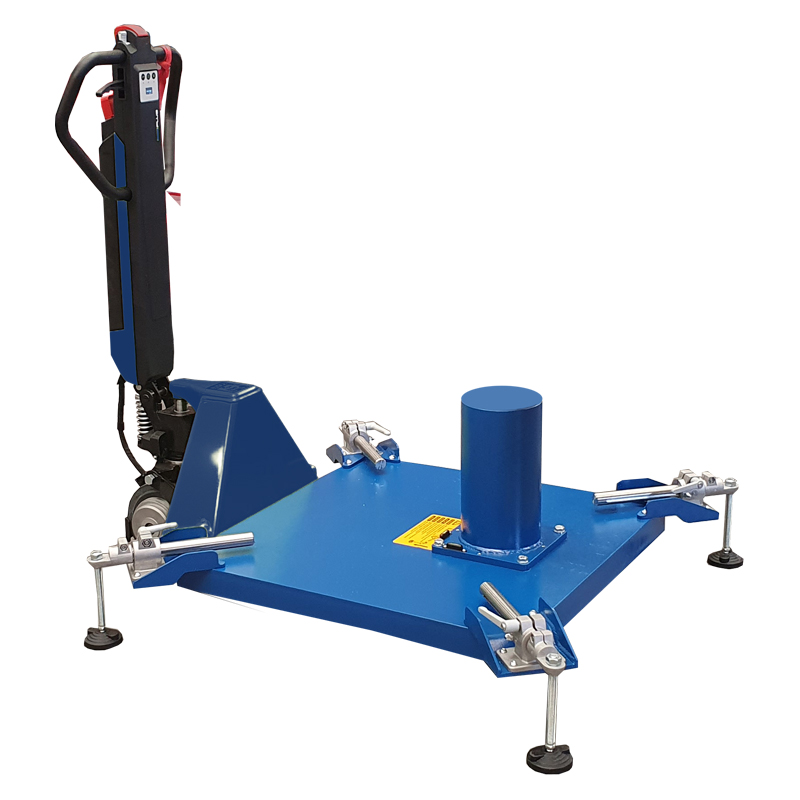

DESCRIPTION - CSM001-2WD : TROLLEY WITH FIXED COLUMN 800X800 mm
CSM001-2WD : TROLLEY WITH FIXED COLUMN 800X800 mm

Total height H=500 mm
Equipped with electric motorized trolley.

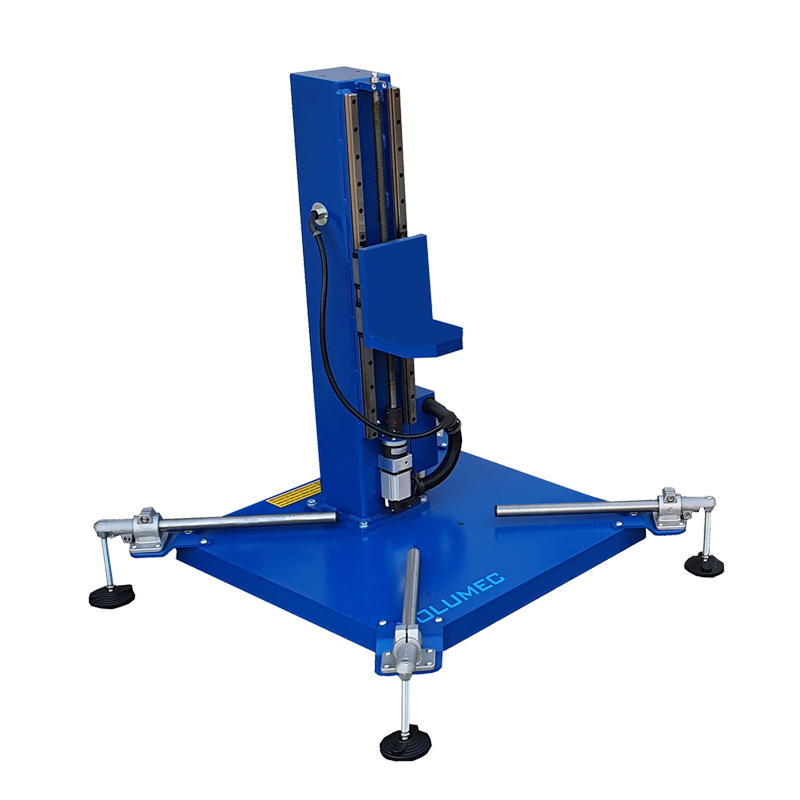

DESCRIPTION - CSM002 : BASEMENT FOR MANIPULATOR WITH ADJUSTABLE LIFTING COLUMN
CSM002 : BASEMENT FOR MANIPULATOR WITH ADJUSTABLE LIFTING COLUMN

Column with H= 1060 mm and stroke 600mm
Material handling through brushless motor 400W – 220 V,
Piloting by electronic accelerator and up and down buttons.
Weight : 400 Kg

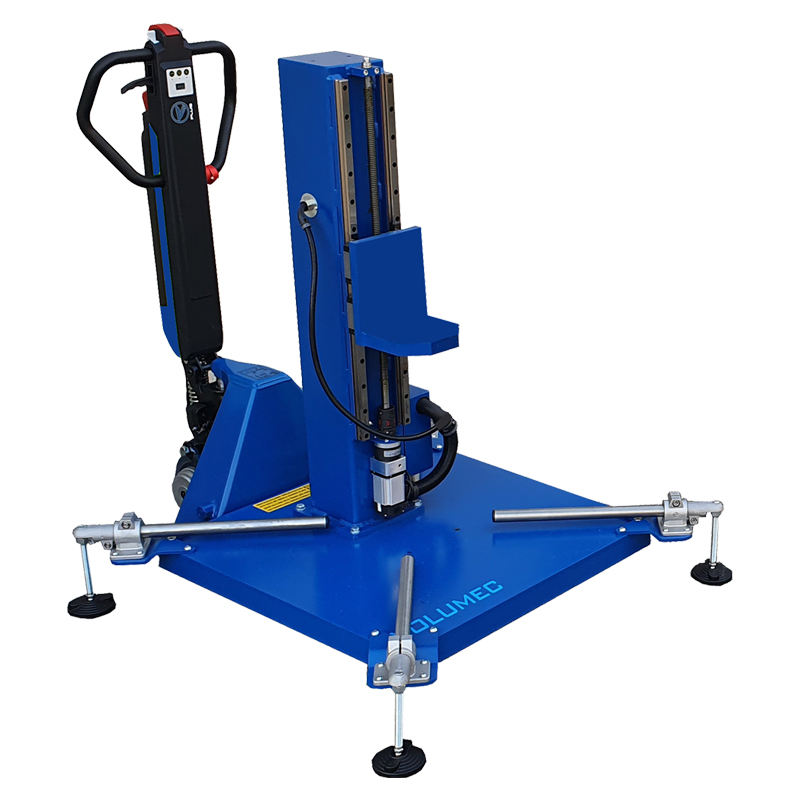

DESCRIPTION - CSM002-2WD :  TROLLEY WITH ADJUSTABLE LIFTING COLUMN
CSM002-2WD : TROLLEY WITH ADJUSTABLE LIFTING COLUMN

Electric motorized trolley.
Column with H= 1060 mm and stroke 600mm
Material handling through brushless motor 400W – 220 V,
Piloting by electronic accelerator and up and down buttons.
Total weight 480 kg.

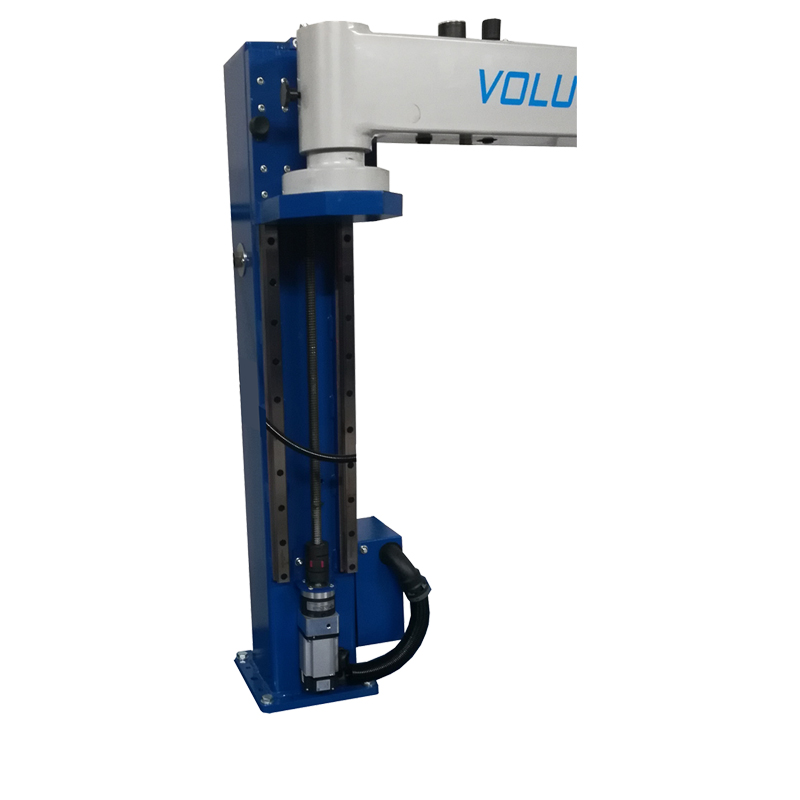

DESCRIPTION - CM600/CM1000 : ADJUSTABLE LIFTING COLUMN
CM600/CM1000 : ADJUSTABLE LIFTING COLUMN

Column with H=1060/1460 mm and stroke 600/1000 mm.
Material handling through brushless motor 400W – 220 V,
Designed for floor fixing

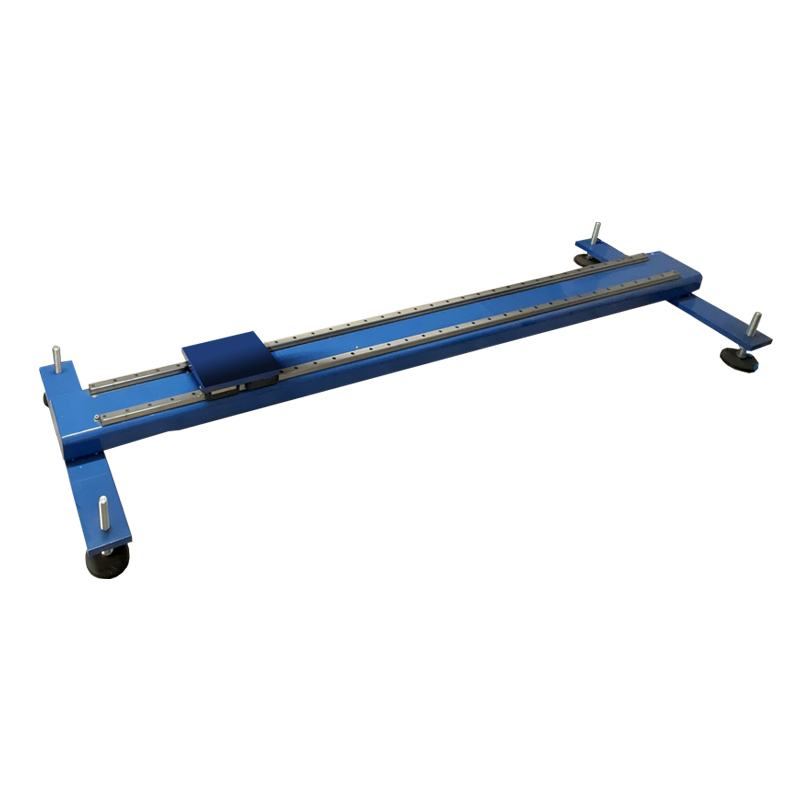

DESCRIPTION - TDR2000-TDR4000: FLOOR RAIL
TDR2000-TDR4000: FLOOR RAIL

Length from 2000 to 4000 mm with manual movement (motorized optional)
